Data Sheet: Triplexer (LP/BP/HP)

This Triplexer is made up of a lowpass section, a bandpass Section and a highpass section. The lowpass section has a passband from DC to 88 MHz, with an insertion loss of 0.7 dB max. and an isolation of at least 40 dB. The bandpass section has a passband from 116 to 512 MHz, with an insertion loss of 1 dB max. and an isolation of at least 40 dB. The highpass section has a passband from 870 to 2000 MHz, with an insertion loss of 0.6 dB max. and an isolation of at least 40 dB.

Currently not available

Specifications

Typical Performance

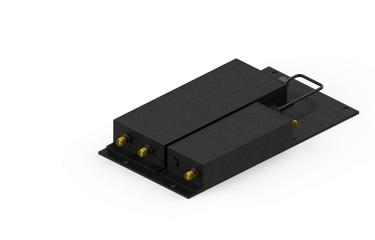

20 Section LC Design

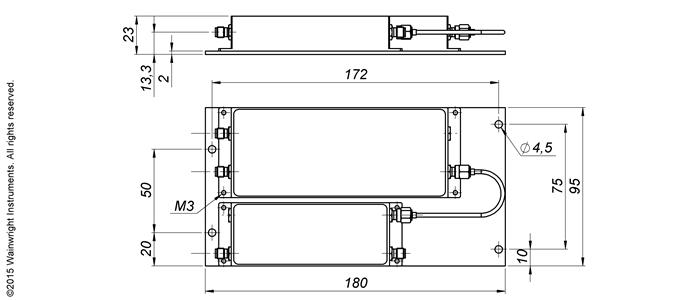

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female
SMA - Male
N - Female
N - Male

	Band 1 (Low Pass)	Band 2 (Band Pass)	Band 3 (High Pass)
Passbands	DC to 88 MHz	116 to 512 MHz	870 to 2000 MHz
Insertion Loss	0.7 dB max.	1 dB max.	0.6 dB max.
Return Loss	14 dB min.	14 dB min.	14 dB min.
Stopbands	116 to 2000 MHz	DC-88 & 870-2000 MHz	DC to 512 MHz
Stopband Attenuation	40 dB min.	40 & 40 dB min.	40 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 20 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 180 x 95 x 23 mm (connectors may protrude)
Approx. Weight	0.65 kg
Mounting Provision	15 mm flanges on both ends
Connector Common	Please choose Connector common
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
Connector 3	Please choose Connector 3
