Data Sheet: Manually Tunable Band Pass Filter

This Tunable Band Pass Filter has a passband with a bandwidth of 10 MHz, a maximum tuning range of 700 MHz - customer defined between 3300 and 4000 MHz - and an insertion loss of 1.75 dB max. (2 dB max. at corners). It has stopbands from DC to Fo - 15 MHz and from Fo + 15 MHz to 8000 MHz, with an attenuation of at least 10 dB.

Attenuation 10 dB min. Currently not available

Specifications

Typical Performance

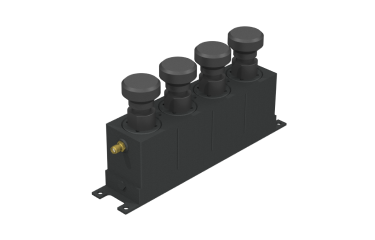

4 Section Cavity Design

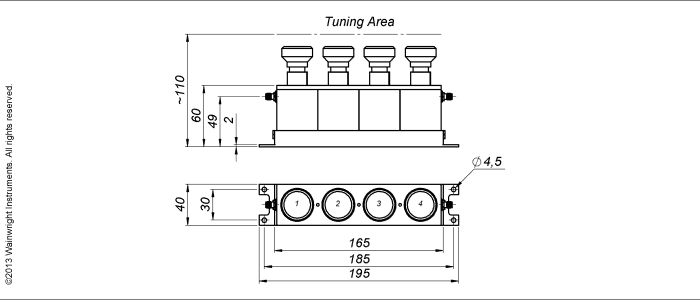

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female
SMA - Male
N - Female
N - Male
BNC - Female
BNC - Male

Passband	10 MHz bandwidth tunable from to MHz choose a tuning range of max 700 MHz between 3300 and 4000 MHz
Insertion Loss	1.75 dB max. at Fo (2 dB max. at Corners)
Return Loss	14 dB min. (VSWR 1.5:1 max.)
Stopband
Stopband Attenuation	10 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	will be quoted on request (See our warranty)
Dimensions (L x W x H)	max. 195 x 40 x 60 mm (connectors may protrude)
Approx. Weight	0.95 kg
Mounting Provision	15 mm flanges on both ends with 4.5 mm holes
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
Tuning	Please choose Tuning Options
