Data Sheet: Diplexer/Duplexer (LP/HP )

This Diplexer is made up of a lowpass and a highpass section. The lowpass section has a passband from DC to 2630 MHz, with an insertion loss of 0.8 dB max. and an isolation of at least 50 dB. The highpass section has a passband from 3350 to 8000 MHz, with an insertion loss of 0.8 dB max. and an isolation of at least 50 dB.

Currently not available

Specifications

Typical Performance

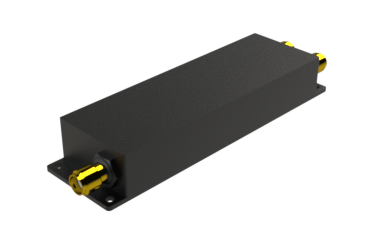

7+7 Section LC Design

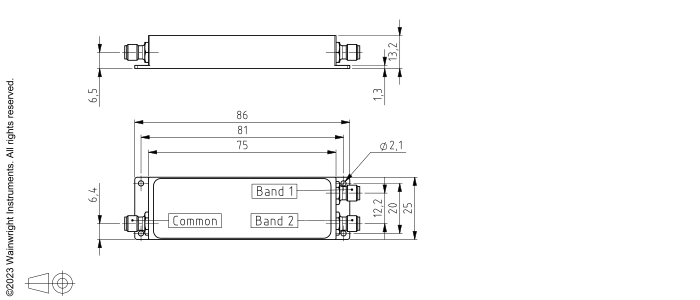

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female

	Band 1 (Low Pass)	Band 2 (High Pass)
Passbands	DC to 2630 MHz	3350 to 8000 MHz
Insertion Loss	0.8 dB max.	0.8 dB max.
Return Loss	14 dB min.	14 dB min.
Stopbands	3350 to 8000 MHz	DC to 2630 MHz
Stopband Attenuation	50 dB min.	50 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 10 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 86 x 25 x 13.2 mm (connectors may protrude)
Approx. Weight	0.116 kg
Mounting Provision	5.5 mm flanges on both ends
Connector Common	Please choose Connector common
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
