Data Sheet: Diplexer/Duplexer (LP/BP)

This Diplexer is made up of a lowpass and a bandpass section. The lowpass section has a passband from DC to 88 MHz, with an insertion loss of 1 dB max. and an isolation of at least 30 dB. The bandpass section has a passband from 100 to 164 MHz, with an insertion loss of 1 dB max. and an isolation of at least 30 dB.

Currently not available

Specifications

Typical Performance

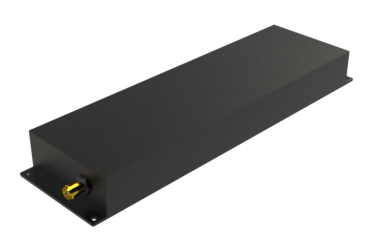

9+8 Section LC Design

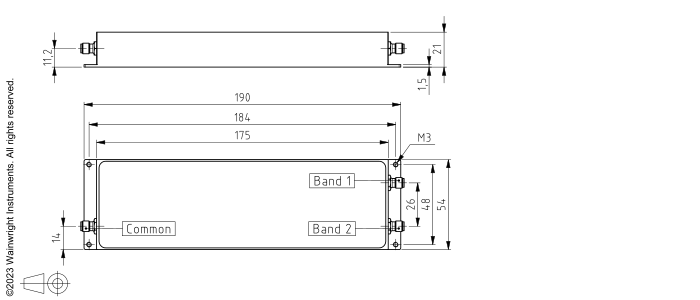

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female
SMA - Male
N - Female
N - Male

	Band 1 (Low Pass)	Band 2 (Band Pass)
Passbands	DC to 88 MHz	100 to 164 MHz
Insertion Loss	1 dB max.	1 dB max.
Return Loss	17 dB min.	17 dB min.
Stopbands	100 to 1100 MHz	DC-88 & 230-1100 MHz
Stopband Attenuation	30 dB min.	30 & 30 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 80 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 190 x 54 x 21 mm (connectors may protrude)
Approx. Weight	0.4 kg
Mounting Provision	10 mm flanges on both ends 10 mm Flansche an beiden Enden mit M3 Gewindelöcherwith M3 threaded holes
Connector Common	Please choose Connector common
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
