Data Sheet: Diplexer/Duplexer (LP/HP )

This Diplexer is made up of a lowpass and a highpass section. The lowpass section has a passband from DC to 270 MHz, with an insertion loss of 1 dB max. and an isolation of at least 40 dB. The highpass section has a passband from 290 to 320 MHz, with an insertion loss of 1 dB max. and an isolation of at least 40 dB.

Currently not available

Specifications

Typical Performance

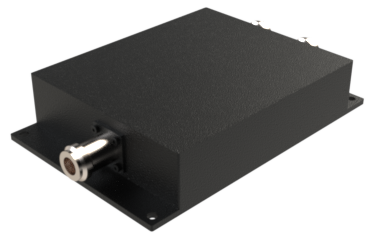

5+5 Section Cauer Design

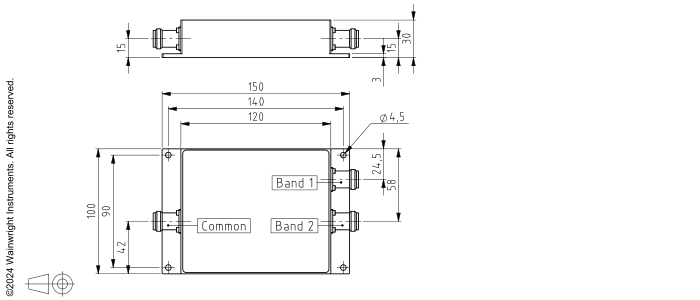

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female
N - Female

	Band 1 (Low Pass)	Band 2 (High Pass)
Passbands	DC to 270 MHz	290 to 320 MHz
Insertion Loss	1 dB max.	1 dB max.
Return Loss	14 dB min.	14 dB min.
Stopbands	290 to 320 MHz	DC to 270 MHz
Stopband Attenuation	40 dB min.	40 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 80 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 150 x 100 x 30 mm (connectors may protrude)
Approx. Weight	1 kg
Mounting Provision	10 mm flanges on both ends
Connector Common	Please choose Connector common
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
