WDG55-DC-180-260-1000-40 | Wainwright Instruments

On this datasheet you can select your preferred connectors. Click Download PDF to generate a PDF document for saving or emailing. You can generate a quote request by entering a quantity in the field at the bottom of the page and clicking Add to Quote Basket. When done selecting filters, please click Quote Basket at the top of the page and fill in the contact form. Before sending us the quotation request you will be able to make adjustments to the quantities or remove items. A copy of your request will be sent to you via email.

Data Sheet: Diplexer/Duplexer (LP/HP )

This Diplexer is made up of a lowpass and a highpass section. The lowpass section has a passband from DC to 180 MHz, with an insertion loss of 0.6 dB max. and an isolation of at least 40 dB. The highpass section has a passband from 260 to 1000 MHz, with an insertion loss of 0.6 dB max. and an isolation of at least 40 dB.

Currently not available

Specifications

Typical Performance

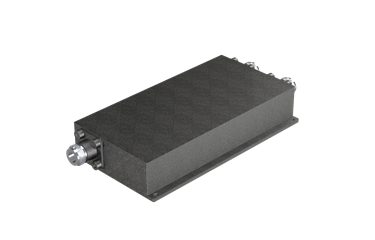

5+5 Section LC Design

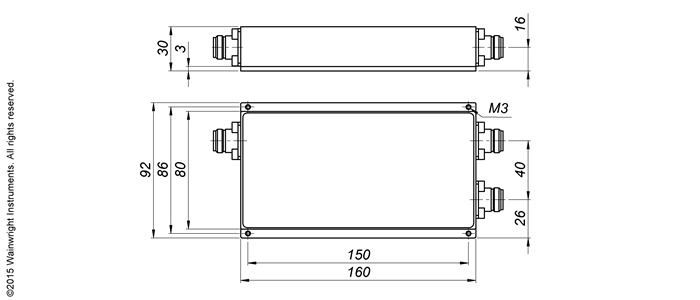

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

N - Female
N - Male

	Band 1 (Low Pass)	Band 2 (High Pass)
Passbands	DC to 180 MHz	260 to 1000 MHz
Insertion Loss	0.6 dB max.	0.6 dB max.
Return Loss	17 dB min.	17 dB min.
Stopbands	260 to 1000 MHz	DC to 180 MHz
Stopband Attenuation	40 dB min.	40 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 300 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 160 x 92 x 30 mm (connectors may protrude)
Approx. Weight	0.8 kg
Mounting Provision	6 mm flanges on both ends
Connector Common	Please choose Connector common
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
