WACX1010-DC-1690-1710-1755-1775-4000-50-60

On this datasheet you can select your preferred connectors. Click Download PDF to generate a PDF document for saving or emailing. You can generate a quote request by entering a quantity in the field at the bottom of the page and clicking Add to Quote Basket. When done selecting filters, please click Quote Basket at the top of the page and fill in the contact form. Before sending us the quotation request you will be able to make adjustments to the quantities or remove items. A copy of your request will be sent to you via email.

Data Sheet: Absorptive Filter (BP/BR)

This Absorptive Filter is made up of a bandpass and a band reject Section. The bandpass section has a passband from 1710 to 1755 MHz, with an insertion loss of 3 dB max. and an isolation of at least 50 dB. The band reject section has a passband from DC to 1690 MHz, with an insertion loss of 1.5 dB max. and an isolation of at least 60 dB and another passband from 1775 to 4000 MHz, with an insertion loss of 1.5 dB max. and an isolation of at least 60 dB.

Currently not available

Specifications

Typical Performance

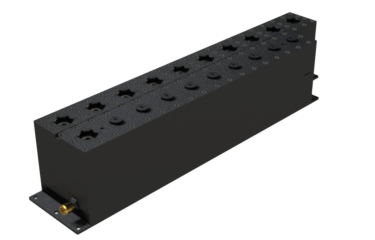

10+10 Section Cavity Design

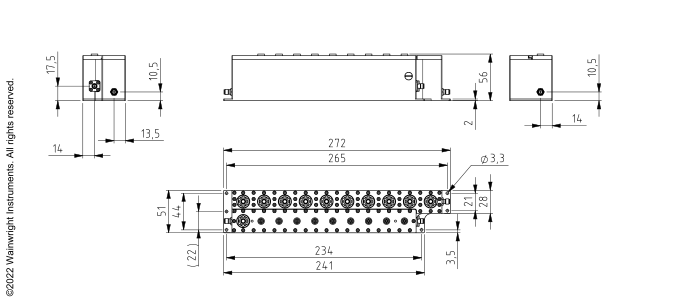

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female
SMA - Male
N - Female

	Band 2 (Band Pass)	Band 1 & 3 (Band Reject)
Passbands	1710 to 1755 MHz	DC to 1690 & 1775 to 4000 MHz
Insertion Loss	3 dB max.	1.5 dB max.
Return Loss	14 dB min.	14 dB min.
Stopbands	DC to 1690 & 1775 to 4000 MHz	1710 to 1755 MHz
Stopband Attenuation	50 & 50 dB min.	60 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 100 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 272 x 51 x 56 mm (connectors may protrude)
Approx. Weight	2.8 kg
Mounting Provision	10 mm Flanges on both ends with 3.3 mm holes
Connector Common	Please choose Connector common
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
