Data Sheet: Absorptive Filter (BP/BR)

This Absorptive Filter is made up of a bandpass and a band reject Section. The bandpass section has a passband from 869 to 894 MHz, with an insertion loss of 2 dB max. and an isolation of at least 20 dB. The band reject section has a passband from DC to 849 MHz, with an insertion loss of 1 dB max. and an isolation of at least 50 dB and another passband from 914 to 2400 MHz, with an insertion loss of 1 dB max. and an isolation of at least 50 dB.

Currently not available

Specifications

Typical Performance

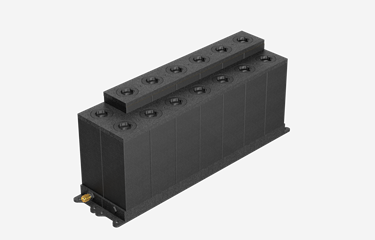

7+7 Section Cavity Design

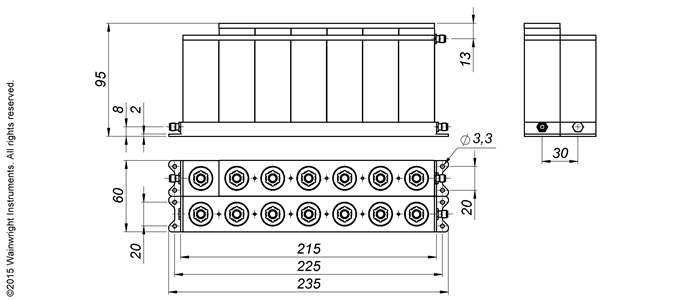

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female
SMA - Male
N - Female

	Band 2 (Band Pass)	Band 1 & 3 (Band Reject)
Passbands	869 to 894 MHz	DC to 849 & 914 to 2400 MHz
Insertion Loss	2 dB max.	1 dB max.
Return Loss	14 dB min.	14 dB min.
Stopbands	DC to 849 & 914 to 2400 MHz	869 to 894 MHz
Stopband Attenuation	20 & 20 dB min.	50 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 100 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 235 x 60 x 95 mm (connectors may protrude)
Approx. Weight	1.8 kg
Mounting Provision	10 mm flanges on both ends with 4.3 mm holes
Connector Common	Please choose Connector common
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
